Filter data in Xprotect

Data filtering is the process of choosing a smaller part of the data set for viewing or analysis. In Xprotect, you may need to run queries (set filters) to hunt for threats from the alerts generated when policies are violated, see the policy push schedules' status, or filter the alerts by a category or hosts by an OS family.

Use the following list of operators, operands to construct queries. Queries can be pinned to every page on the UI or bookmarked for future use. See Filter queries feature capabilities for more details.

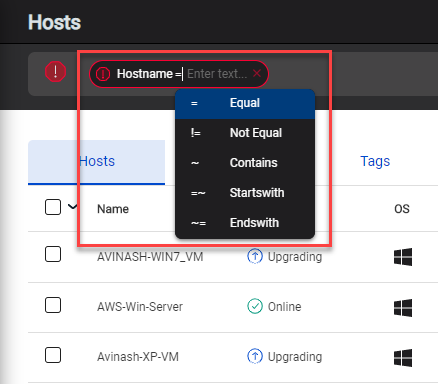

Query operators

Construct queries using the following operators.

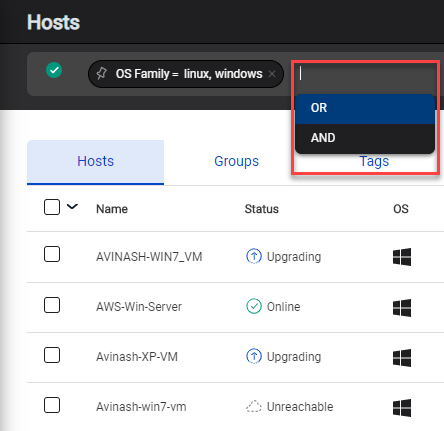

Logical

Mathematical

The Startswith or Endswith operators can query the data set faster, especially when the data set is huge.

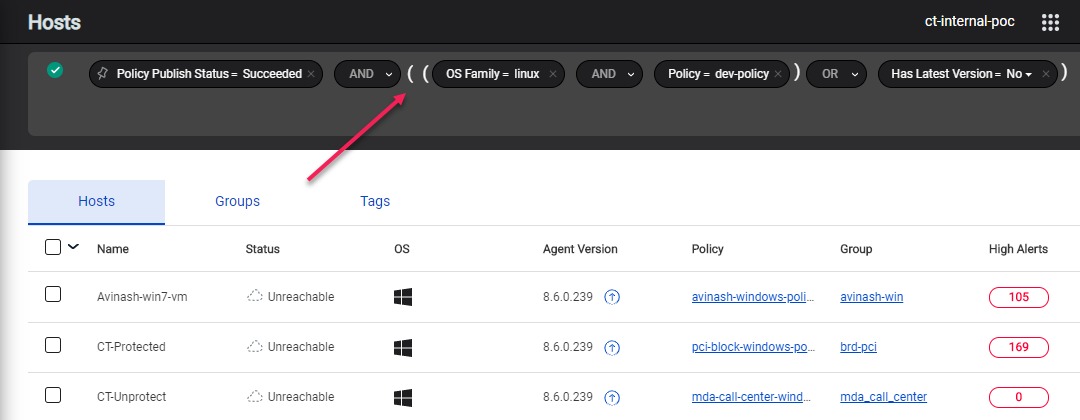

Parenthesis

You can use parenthesis to construct nested queries for up to two levels. You can also construct queries by using multiple nested queries, with each up to Two levels.

Query operands

The operands available for constructing a query differ by the page you are on in Xprotect.

Page	Operands
Alerts > Summary Alerts	Process, Process Path, Parent, Parent Path, MD5, Alert Category, Severity, Host Policy, Alert Reason, Trust, Time Period, CMD Line, Action Taken, and User Policy
Alerts > Detailed Alerts	Hostname, Time Period, Host Group, Host Policy, Severity, Trust, Action Taken, Process, Process Path, Alert Category, Alert Reason, IP Address, Parent, Parent Path, MD5, User, CMD Line, Parent CMD Line, and User Policy
Hosts > Hosts	Agent Version, Host Group, Hostname, OS, OS Family, Host Policy, Queued Host Policy, Host Policy, Publish Status, Status, Tags, Has Latest Version, Installed On, IP Address, User, Policy Setting, Temporary Settings, Agent Mode, CPU Usage Overload, Active User, User Policy, Queued User Policy and User Policy Publish Status
Hosts > Host Groups	Host Policy and Host Group
Hosts > Tags	Tags
Hosts > User Groups	User Policy and User Group
Policies > Host Policies	Host Policy, OS Family, and Search Rules
Policies > User Policies	User Policy, OS Family, and Search Rules
Commands	Hostname
Users > Users	Username, User Group, AD Group, AD Department, and Login Email
Users > AD-Groups	AD Group
Users > AD-Departments	AD Department
Files > Fetched Files	Hostname
Files > File Isolation	Hostname, Filename, Status, and Operation
Reports	Report Name, Report Type, and Report Schedule
Audit Logs	Category, Name, Audit Action, Audit Status, Time Period, and Action By

Operand value types

The values of the operands differ by the operand you use to construct the query.

Value types	Some operand examples
Array	Trust, Alert Category and Policy Publish Status You can select multiple values from the array.
Alphanumeric string	Hostname, Policy, and OS
Date and time picker	Installed On and Updated In
Dotted decimal	Agent Version and Latest Version
IP address	IP address
Like (Yes or No)	Has Latest Version

Filter queries feature capabilities

You can leverage the following capabilities of the 'Filter queries' feature in Xprotect. These capabilities work on all applicable pages (except the Dashboard and Settings pages) on the UI.

Query syntax correctness

Xprotect assesses the correctness of the syntax of the queries that you construct.

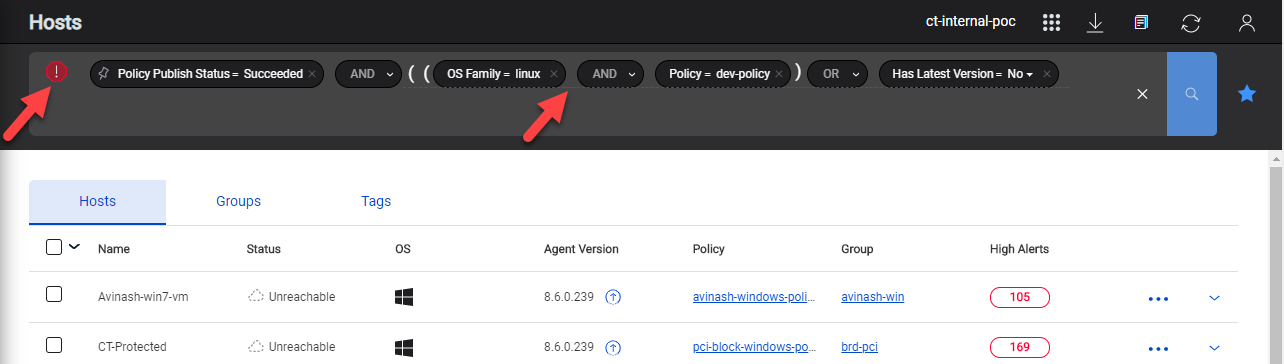

Incorrect syntax

Queries with incorrect syntax display a Red exclamation. Also, the part of the query that uses the parenthesis is underlined in Red until you use the parenthesis operator correctly.

You cannot run incorrect queries unless you use the correct syntax.

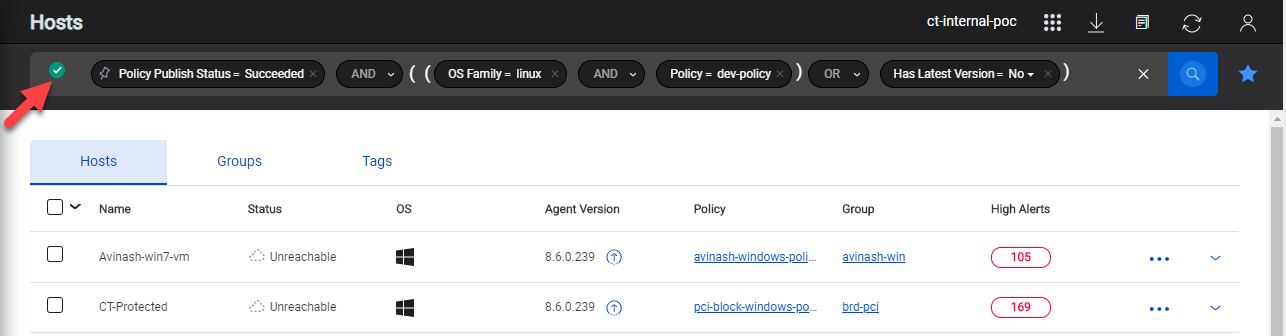

Correct syntax

Queries that are constructed with the correct syntax display a Green tick mark. Such queries can be executed or bookmarked.

Execute queries

To execute a query, click the Search icon located at the right of the query field/bar.

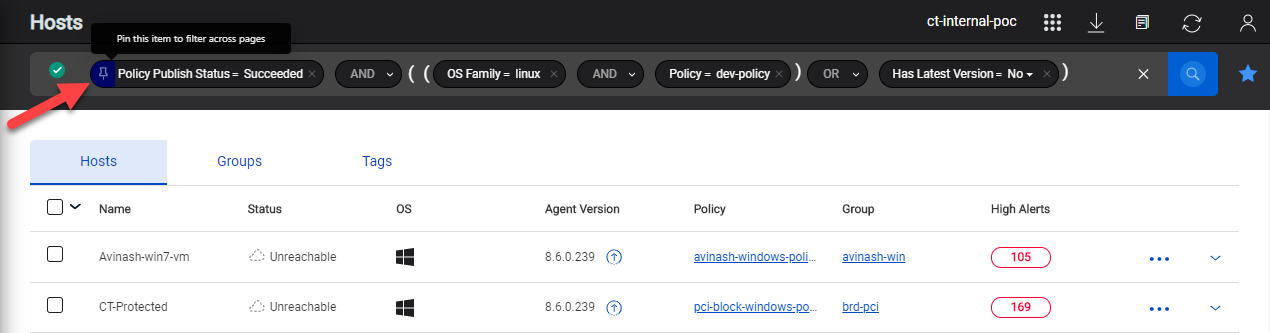

Pin queries

Pinning a query displays the query on all relevant pages on the UI. The pinned query may not always be meaningful on all the applicable pages. However, it helps you see the applicable pages in the filtered view as long the query is pinned.

For example, filter both the Alerts and Hosts page by an OS family. This may not be meaningful on the Policies and Files pages.

Bookmark queries

You can bookmark queries like you bookmark Websites and URLs on a Web browser. This can help you save the combinations of operands and operators you use often and complex queries for future use.

Bookmarks can be Private (restricted to the user who created the query) or Public (anyone on the tenant can use the query). See Bookmark filter queries for more details.

Running complex queries is resource-intensive. The time taken to fetch the results depends on the complexity of the query you are running.
